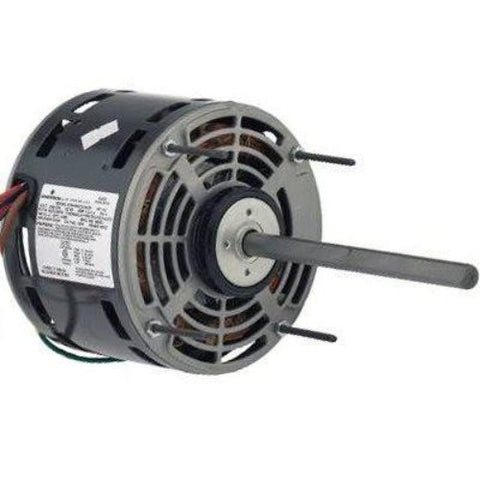

1693, US Motors, 1/3HP, 1625 Rpm, 230V, K055TBY8216012B, 7124-0507, D787 , X466

US MOTORS

$337.38

1693 US MOTOR, EM-1693, 7124-0507, REMPLACE D787

Horsepower :1/3
Voltage :208-230
Amps :2.10-1.40
RPM :1625
Frequency :60 Hz
Length :4.70"
"C" Dim. :10.40"
Enclosure :Open Air Over
Shaft Dim. :1/2" x 5.00"
Type :Permanent Split Capacitor
Speeds :3
Diameter :5-5/8"
Frame :48Y
Bearings :Self-Aligning Bearings
Rotation :Reversible
Protector :Automatic
Service Factor :1.00
Phase :1
Ambient Temp. :40°C
Feature(s) :Class 'B' Insulation, 2.5" Hub Ring Mount, 24" Leads, SAB Bearings have All Angle Thrust System
Weight (lbs.) :13
RUN CAP MFD 5 uF
