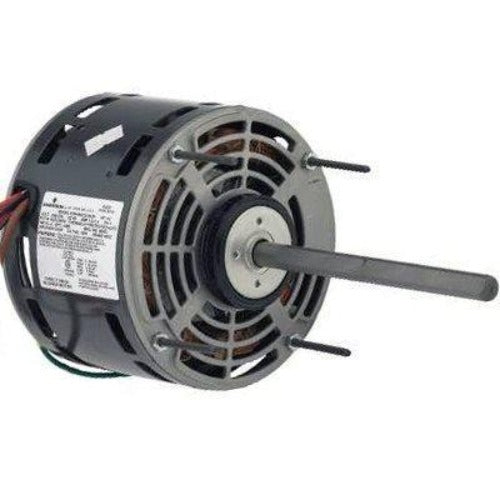

1692, Us motors,1/3 hp,1625/3spd,115v,fr 48, odp, fdl1034 century,D780

US MOTORS

$369.24

1692, EM-1692, FDL1034 AO SMITH, FASCO D780, CPN 921700, 7124-0083

Horsepower :1/3
Voltage :115
Amps :3.70
RPM :1625
Frequency :60 Hz
Length :4.60"
"C" Dim. :10.70"
Enclosure :Open Air Over
Shaft Dim. :1/2" x 5.00"
Type :Permanent Split Capacitor
Speeds :3
Diameter :5-5/8"
Frame :48Y
Bearings :Self-Aligning Bearings
Rotation :Reversible
Protector :Automatic
Service Factor :1.00
Phase :1
Ambient Temp. :40°C
Feature(s) :Class 'B' Insulation, 2.5" Hub Ring Mount, 24" Leads, SAB Bearings have All Angle Thrust System
Weight (lbs.) :13
