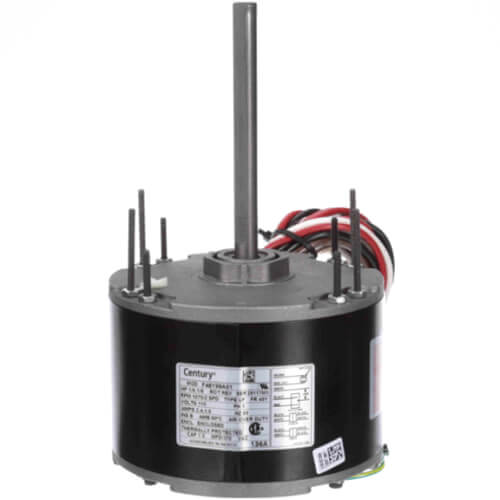

136A,Century,1/6-1/8Hp,1075Rpm, 115 Volts, 2 Speed, TEAO, Frame:48, Ball,

E-Motor Nations

$464.51

136A,Century,TEAO, 136 Ao Smith,

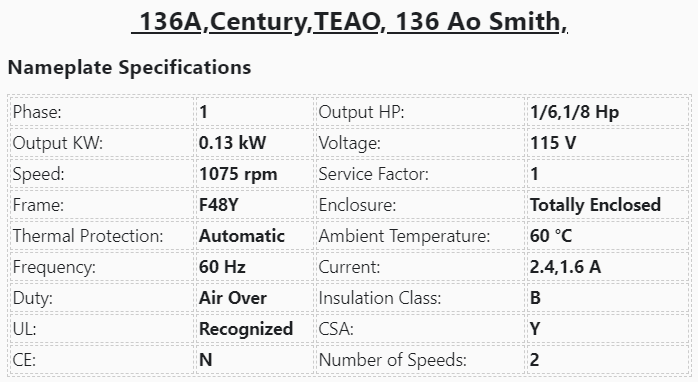

Nameplate Specifications

Phase:	1	Output HP:	1/6,1/8 Hp
Output KW:	0.13 kW	Voltage:	115 V
Speed:	1075 rpm	Service Factor:	1
Frame:	F48Y	Enclosure:	Totally Enclosed
Thermal Protection:	Automatic	Ambient Temperature:	60 °C
Frequency:	60 Hz	Current:	2.4,1.6 A
Duty:	Air Over	Insulation Class:	B
UL:	Recognized	CSA:	Y
CE:	N	Number of Speeds:	2

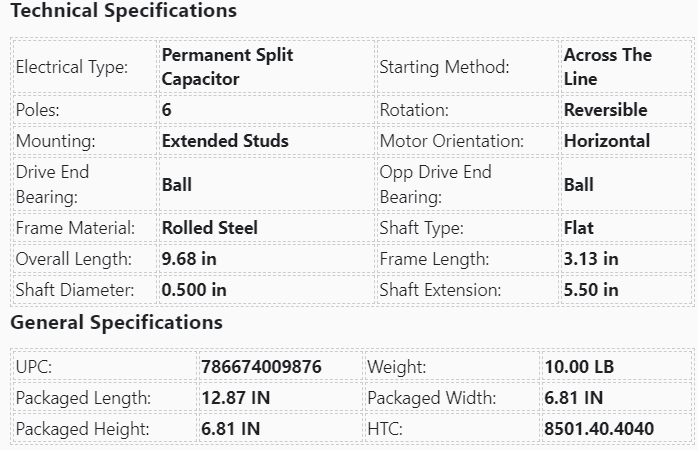

Technical Specifications

Electrical Type:	Permanent Split Capacitor	Starting Method:	Across The Line
Poles:	6	Rotation:	Reversible
Mounting:	Extended Studs	Motor Orientation:	Horizontal
Drive End Bearing:	Ball	Opp Drive End Bearing:	Ball
Frame Material:	Rolled Steel	Shaft Type:	Flat
Overall Length:	9.68 in	Frame Length:	3.13 in
Shaft Diameter:	0.500 in	Shaft Extension:	5.50 in

General Specifications

UPC:	786674009876	Weight:	10.00 LB
Packaged Length:	12.87 IN	Packaged Width:	6.81 IN
Packaged Height:	6.81 IN	HTC:	8501.40.4040

Horsepower :1/6
Voltage :115
Amps :2.40
RPM :1075
Frequency :60 Hz
Length :3-3/4"
"C" Dim. :9-7/32"
Enclosure :Totally Enclosed Air Over
Shaft Dim. :1/2" x 5-1/2"
Type :Permanent Split Capacitor
Speeds :2
Diameter :5-5/8"
Frame :48Y
Bearings :Ball
Rotation :Reversible
Protector :Automatic
Service Factor :1.00
Phase :1
Ambient Temp. :60°C
Capacitor Rating :7.5MFD-370V
Feature(s) :Class 'B' Insulation, No Base, Resilient rings and Thru-bolts included
Weight (lbs.) :10

Unit Heater Fan Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
12" Leads
Extended Studs Shaft End, Resilient Ring Mounting
