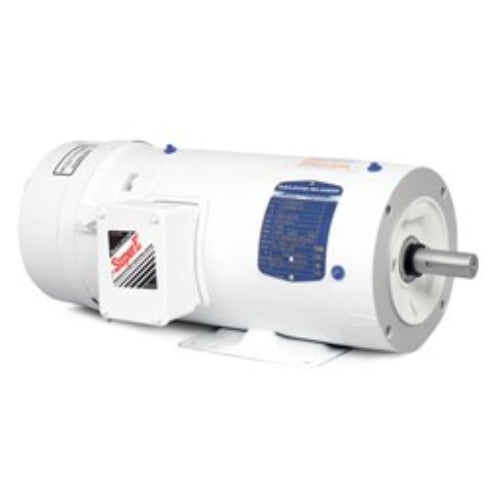

CEWDBM3546T, Baldor, 1 HP, 1765 RPM 208-230/460V, 35MM890P560G1, FR:143TC

BALDOR

$3,595.69

CEWDBM3546T, BALDOR, WASHDOWN MOTORS. SPEC 35MM890P560G1

CAT.NO.	CEWDBM3546T
SPEC.	35MM890P560G1
HP	1
VOLTS	230/460
AMP	2.9/1.45
RPM	1745
FRAME	143TC			HZ		60					PH		3
SER.F.	1.15	CODE			M	DES		B	CLASS			F
NEMA-NOM-EFF	85.5		PF		76
RATING	40C AMB-CONT
CC	010A		USABLE AT 208V							3
DE	6205			ODE			6203
ENCL	TENV

Features:

• 300 series stainless steel hardware
• Neoprene gaskets
• Double sealed ball bearings
• Power off manual release brake with
automatic reset
• Lip and V-Ring seal on DE
• NEMA Premium® efficiency
• Electrostatically applied epoxy finish
• Stainless steel shaft extension
• Standard NEMA BA dimension

Applications:
• Food processing
• Wet environment
• Conveyors
• Packaging
• Pumps and
wastewater
